Pump

  • Metal Case Solenoid SAS

    Coil Voltage 6 to 36 VDC
    AMETEK Switch Type SAS Solenoids Switches are available with 100 amps or 200 amps current rating for use in either intermittent heavy duty (10 min. max on time) or continuous duty applications. The contact configuration is Single Pole Single Throw, Normally Open (SPST NO).

    Keep Reading
  • Metal Case Solenoid SAW

    Coil Voltage 6 to 24 VDC
    AMETEK Switch Type SAW Solenoids Switches are available with 100 amps current rating for use in intermittent duty (2 min. max on time) applications. The contact configuration is Single Pole Single Throw, Normally Open (SPST NO).

    Keep Reading
  • Metal Case Solenoid SBD

    Coil Voltage 6 to 36 VDC
    AMETEK Switch Type SBD Solenoids Switches are available with 100 amps or 200 amps current rating for use in either intermittent heavy duty (10 min. max on time) or continuous duty applications. The contact configuration is Single Pole Double Throw, Normally Open / Normally Closed (SPDT NO/NC).

    Keep Reading
  • Model JA 46 100 - 150 AMP DC Contactor

    100 - 150 Amp Rating, Coil Voltage 12 V to 240 VDC
    AMETEK Switch 46 Series DC Contactors are designed to fit a wide range of applications including electric forklift trucks, DC winches, electric vehicles, and more recently to the telecommunications industry. The 46 Series is of a modular design construction, featuring a quick assembly and disassembly with the removal of two screws. This format offers the user an easier and cost effective way to servicing.

    Keep Reading
  • Model JCA48 250 - 300 AMP DC Contactor

    Up to 60 VDC, 250 - 300 Amps
    The JCA48 Series DC contactors are specifically designed for use in Resistive Load applications, particularly the standby power market and in the telecommunications industry.

    Keep Reading
  • Model JEA48 350 - 600 AMP DC Contactor

    Up to 60 VDC, 350 - 600 Amps
    The JEA48 Series DC contactors are specifically designed for use in Resistive Load applications, particularly the standby power market and in the telecommunications industry.
    Other typical applications include emergency lighting systems, welding equipment, commercial and military generator sets, load bank power circuits, and battery chargers, for Inductive Load applications please contact AMETEK Switch for additional data on this product.

    Keep Reading
  • Plastic Case Solenoid SAZ

    Coil Voltage 12 to 24 VDC, IP67 Certified
    AMETEK Switch Type SAZ Solenoid Switches are available with 100 amps current rating for use in intermittent duty(2 min. max on time) or heavy duty intermittent (10 min. max on time) applications. The contact configuration is Single Pole Single Throw, Normally Open (SPST NO).

    Keep Reading

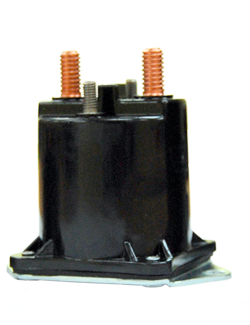

  • Plastic Case Solenoid SBC

    Coil Voltage 12 to 48 VDC, IP67 Certified
    AMETEK Switch Type SBC Solenoid Switches are available with 100 amps current rating for use in heavy duty intermittent (10 min. max on time) and continuous duty applications. The contact configuration is Single Pole Single Throw, Normally Open (SPST NO).

    Keep Reading
  • Plastic Case Solenoid SBJ

    Coil Voltage 12 to 48 VDC, IP67 Certified
    AMETEK Switch Type SBJ Solenoid Switches are available with 100 amps or 200 amps current rating for use in continuous duty applications.The contact configuration is Single Pole Single Throw, Normally Open (SPST NO). The movable contacts are available with copper or silver alloy material. Various mounting configurations and wiring options are available.

    Keep Reading
