Solid State Contactors
These new contactors give you more than just an isolated current switch. They are able to provide you with circuit protection from high temperature and overload situations. You can have voltage protection to prevent motor damage that might be seen when using a traditional mechanical switch. No moving parts gives long life in the most challenging environmental conditions.

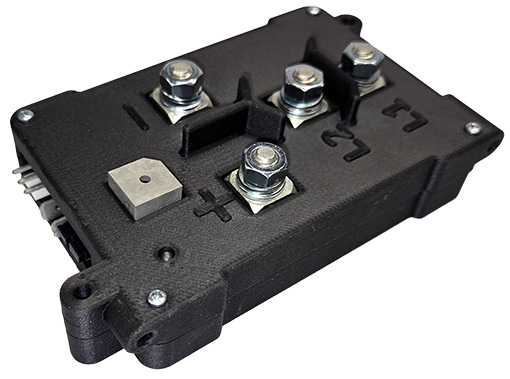

Model: SSFR-75 and SSFR-100
75 Amp and 100 Amp Bi Directional Current Switches (Forward / Reverse)
Features:
- Over - under voltage protection
- Reverse battery protection
- Over current protection
- Optional over temperature protection
- Short circuit protection
- LED status indication
Specifications:
- Operating voltage: 8.5 - 14.4 VDC
- Control input voltage: Minimum of 70% of operating voltage
- Continuous current: Up to 100 A
- Peak inrush: 225 A @ 55°C
- Compliant with ISO 7637 Load Dump
- Compliant with ISO 16750 Load Dump
- Temperature: -40°C to +50°C
- IP CODE: IP67 per IEC 60529
- Approximate weight: 0.4 lbs (0.18 kg)
- RoHS compliant
Additional Options:
- Contact us for custom mounting, connection terminals, bus bars and integrated cables
- CANBUS and LINBUS communication protocols available on some models, contact us for more information
Case Study
Learn how we were able to customize our Solid State Switches to help a manufacturer of stair climbing hand trucks who was no longer supported by their previous vendor. View the case study here.
Contact us today to learn how these new Solid State Switches can provide you with benefits that far surpass a simple current switch.
